THE CONNECTED WORKSPACE FOR CONSTRUCTION
Point to the detail.
Connect the next action.
Pafta is Construn’s browser-based drawing and 3D model review module. It connects converted CAD details and model context to workflow items, so review can lead directly to an assigned task.
Explore it with your team ↗
01

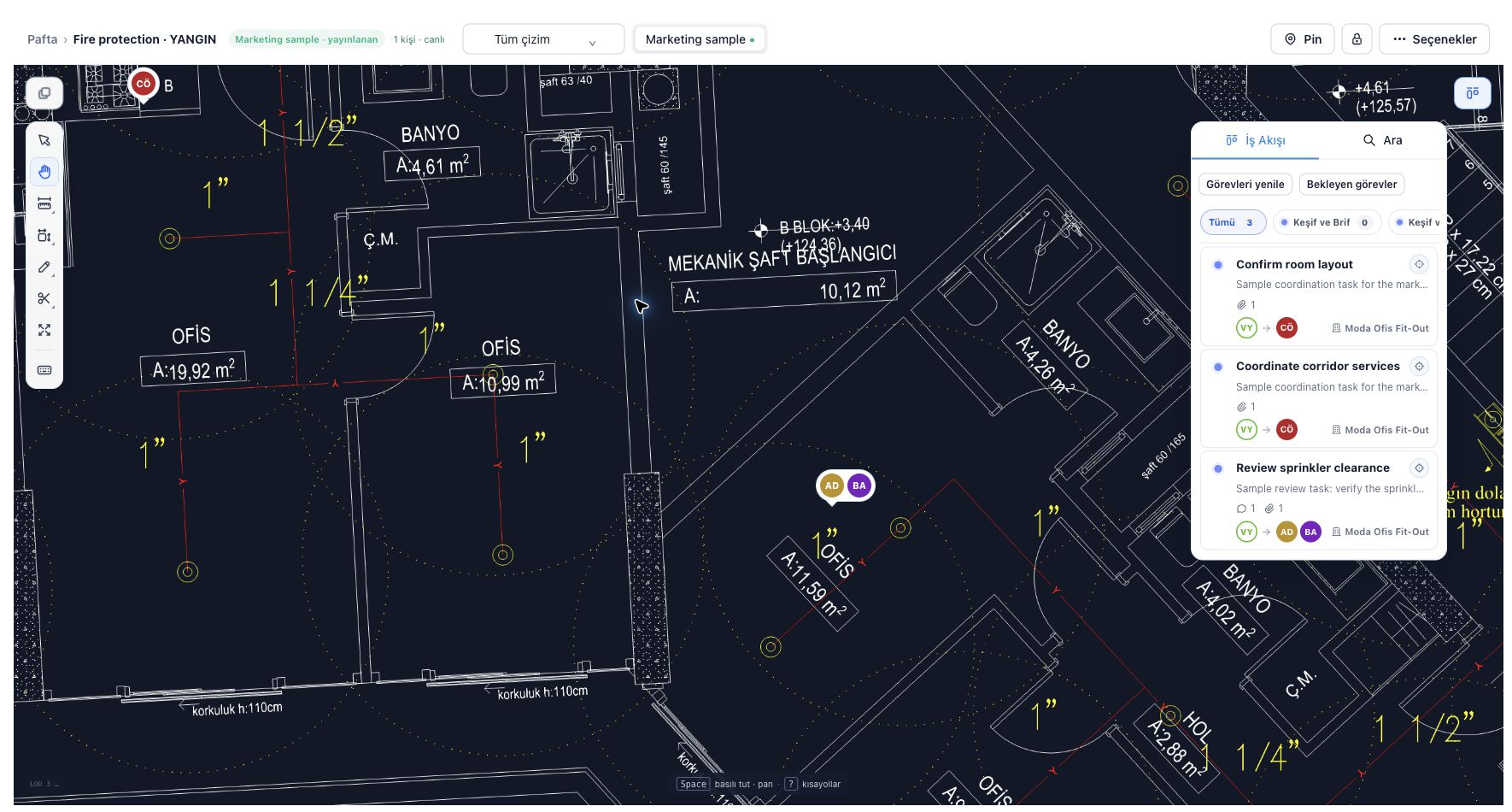

Review the converted source before publishing
Supported source files are converted into browser-viewable assets. The supplied YANGIN DWG example shows actual drawing geometry and dimensions in Pafta. Conversion can produce warnings about source features; review those warnings and the converted result before publishing a version. A converted view is a coordination aid, not a substitute for checking the original source.
02
A pin connects the drawing to the task
Anchor a workflow item to the location being discussed. Open its assignees, comments and next actions beside the drawing. In the product example, sprinkler clearance, corridor services and room layout each have their own workflow context. The visible avatars represent assigned sample users, rather than a claim about people currently online.
03

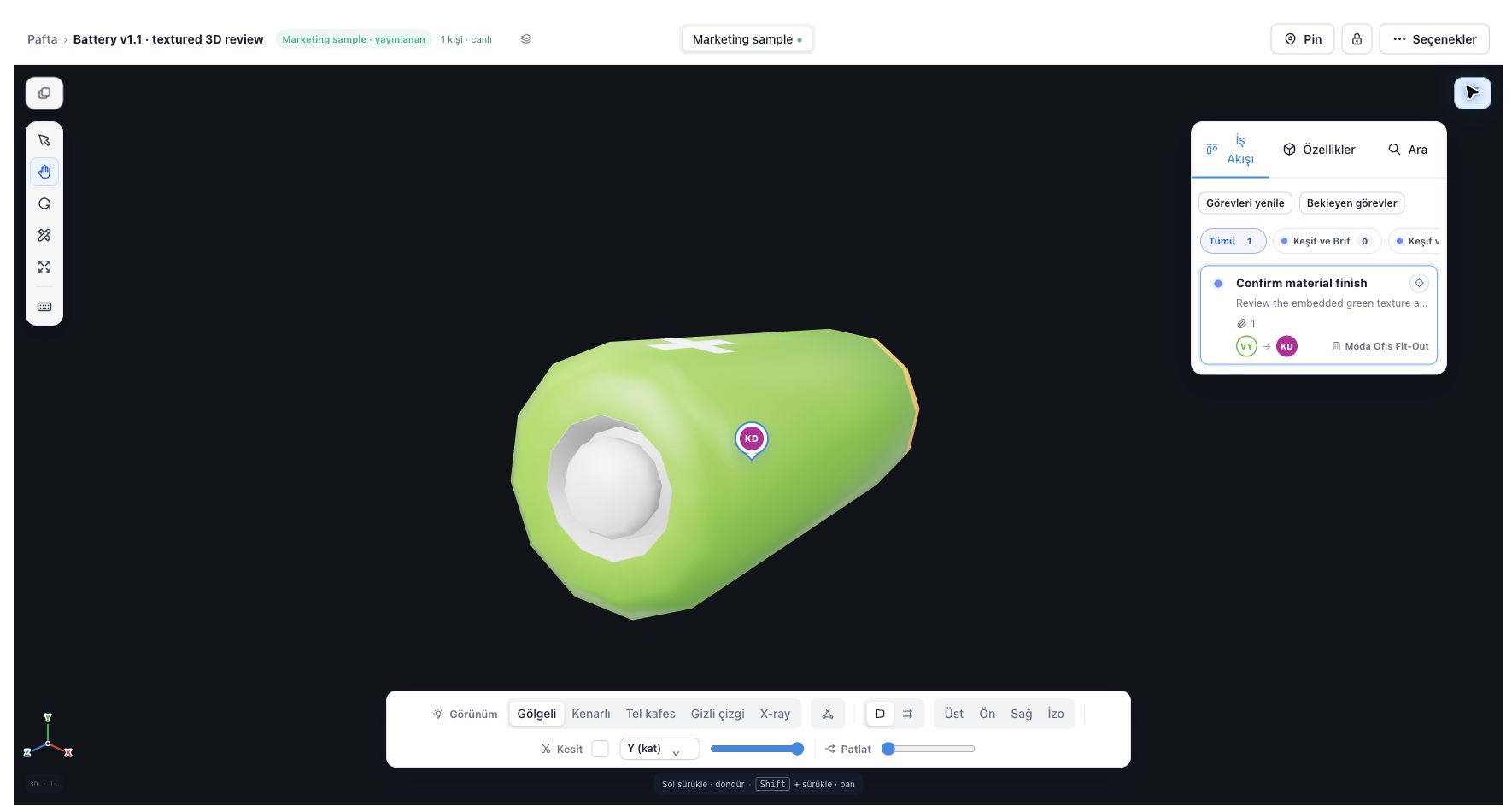

The same review context in 3D
Pafta also displays supported model viewing assets in the browser. The Battery v1.1 example preserves the supplied model’s geometry and UV coordinates, with its green texture embedded in the GLB viewing derivative. A workflow pin is anchored to the model surface. Texture availability and conversion results depend on the source; review your own files as part of the demonstration.
04
Keep ownership and revisions together
Use the linked task to follow responsibility and discussion, and use revision review to inspect changes between versions. This gives the office and site team a common reference for the next action. Access depends on workspace permissions, and conversion warnings remain available in the product.
Your next project.
A better connection.
Tell us what your team needs to bring together.
Request a demonstration ↗Product information reviewed 3 October 2026. Product screens use sample records. Features and integrations depend on the installation and permissions.
